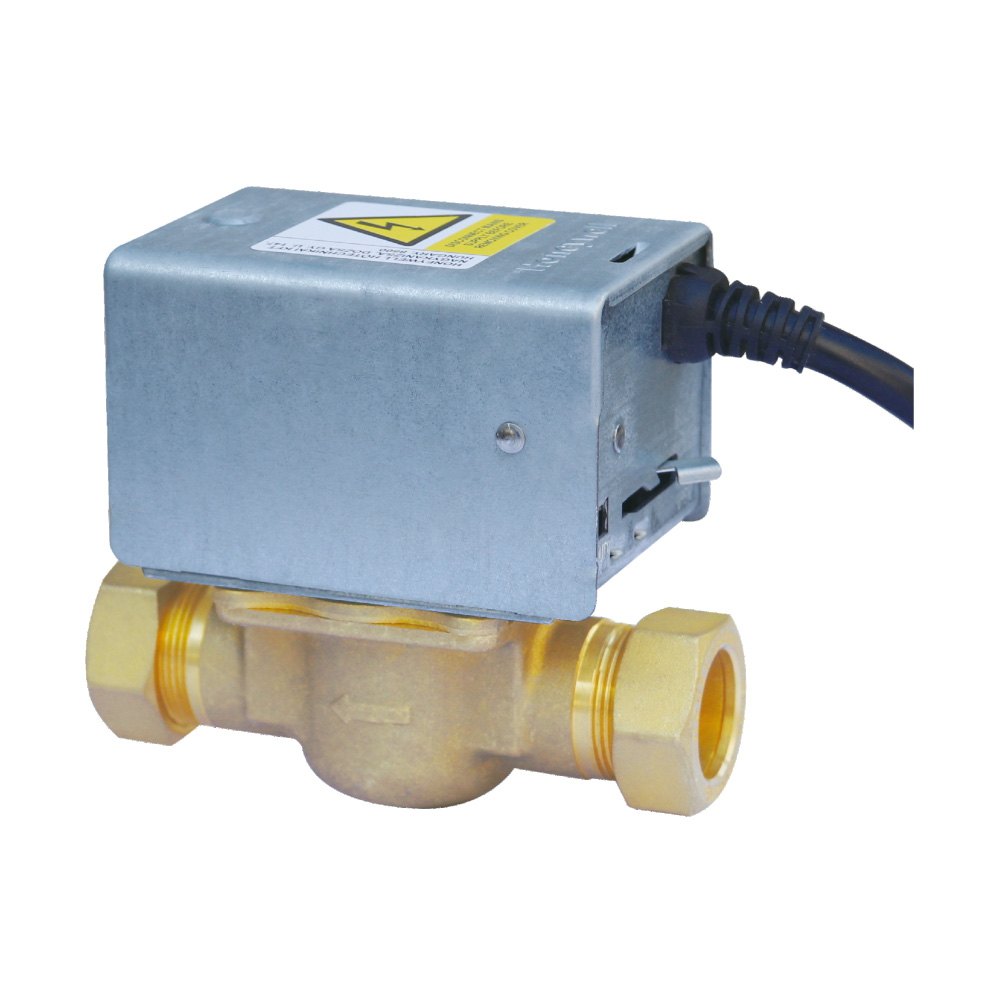

Connection diameter: 22 28 two-way/three-way
Connection method: card tube interface 7/8″ 1-1/8″
Media range: hot and cold water or 30% ethylene glycol solution 2℃~95℃
Valve body pressure: 1.6Mpa
Working voltage: AC24V/AC110V/AC220V 50/60Hz
Motor power consumption: 6.5VA
Drive mode: power on, power off, close, spring automatic reset
Operation time: 18 seconds to open the valve, 7 seconds to close the valve
