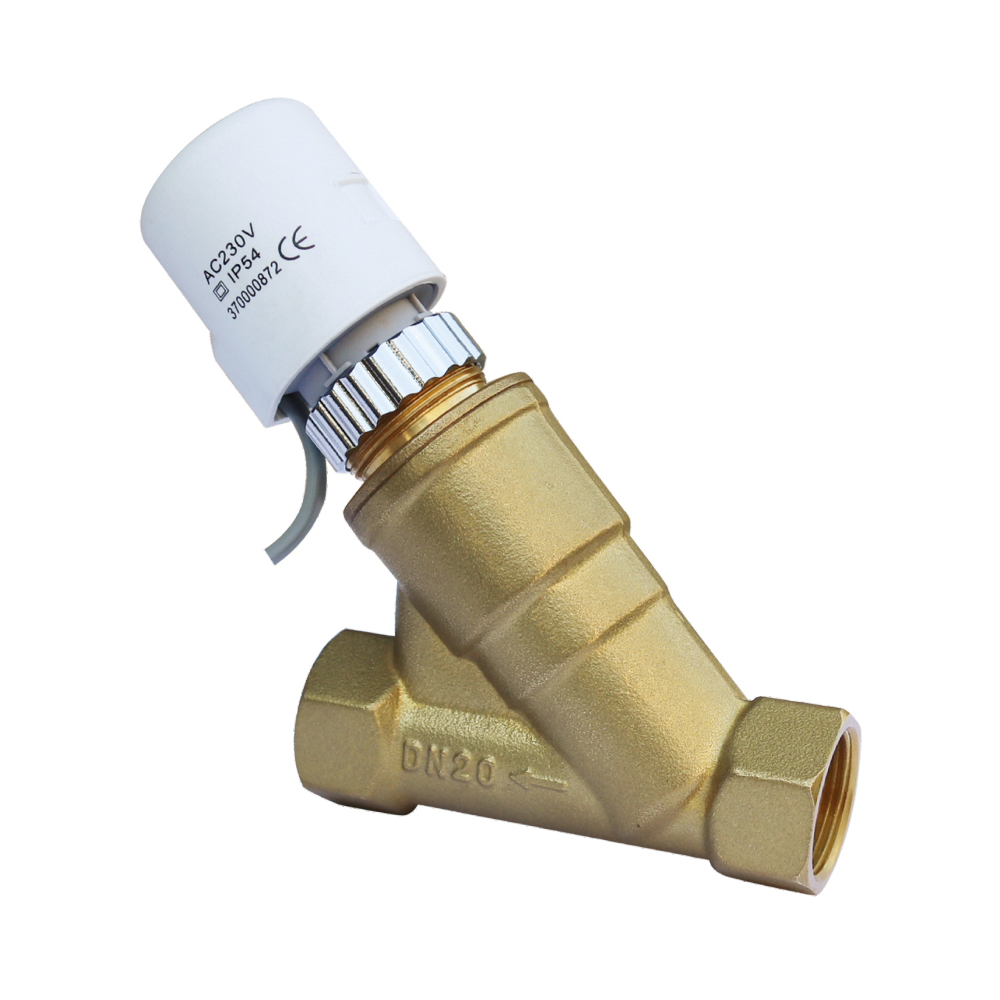

Connection diameter: DN15 DN20 DN25 two-way
Connection method: internal thread G1/2 “G3/4 “G1”
(customizable NPT)
Media range: hot and cold water or 30% ethylene glycol solution 2℃*95℃
Valve body pressure: 2. OMpa
Working voltage: AC24V/AC110V/AC220V 50/60Hz
Motor power consumption: paraffin drive propeller 2VA
Drive mode: power on, power off, close, spring automatic reset
Operation time: 4 minutes for opening and 4 minutes for closing
