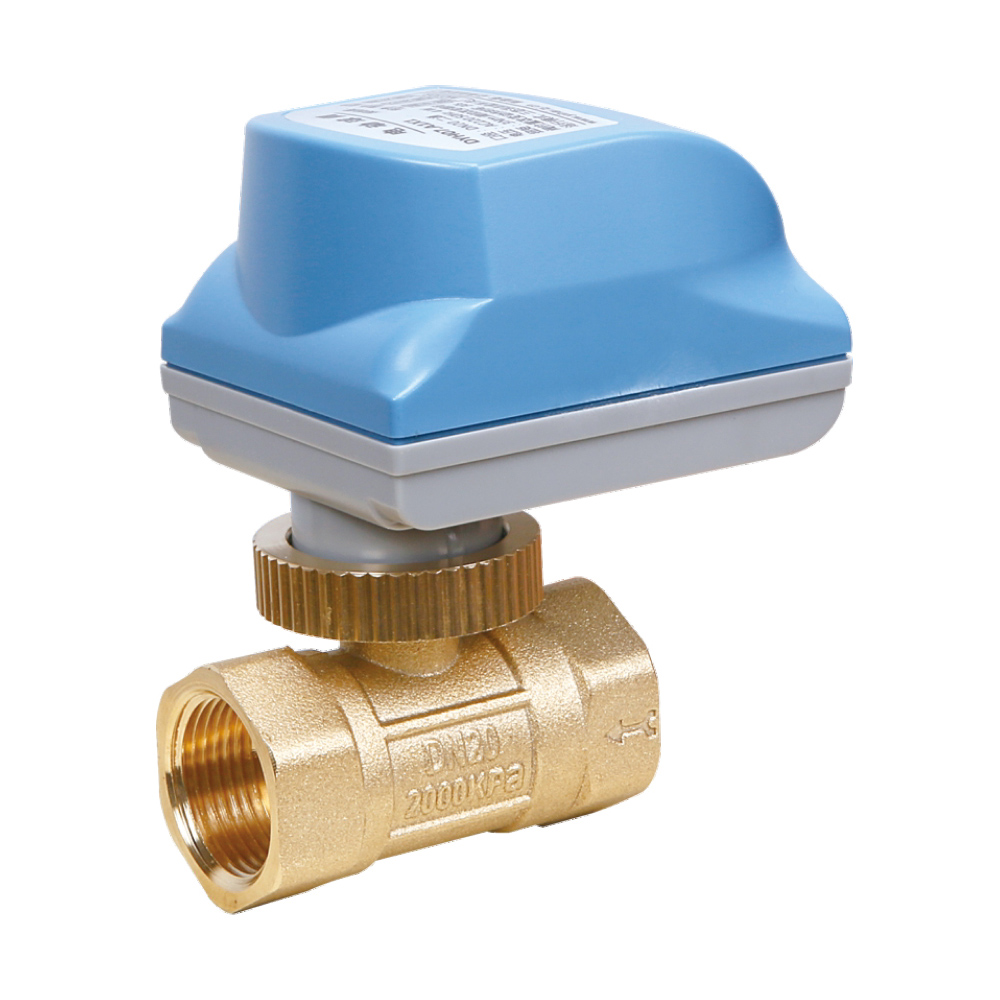

Connection diameter: DN15 DN20 DN25 two-way
Connection method: internal thread G1/2 “G3/4” G1 “(customizable NPT)
Media range: hot and cold water or 30% ethylene glycol solution 2℃*95℃
Valve body pressure: 2. OMpa
Working voltage: AC24V/AC220V 50/60Hz
Motor power consumption: 4. 5VA (motor power-off protection function when control is in place)
Drive mode: three-wire two-control (customized three-wire one-control)
Output torque: 3Nm
Operation time: open valve for 30 seconds and close valve for 30 seconds (rotation angle ~9)
