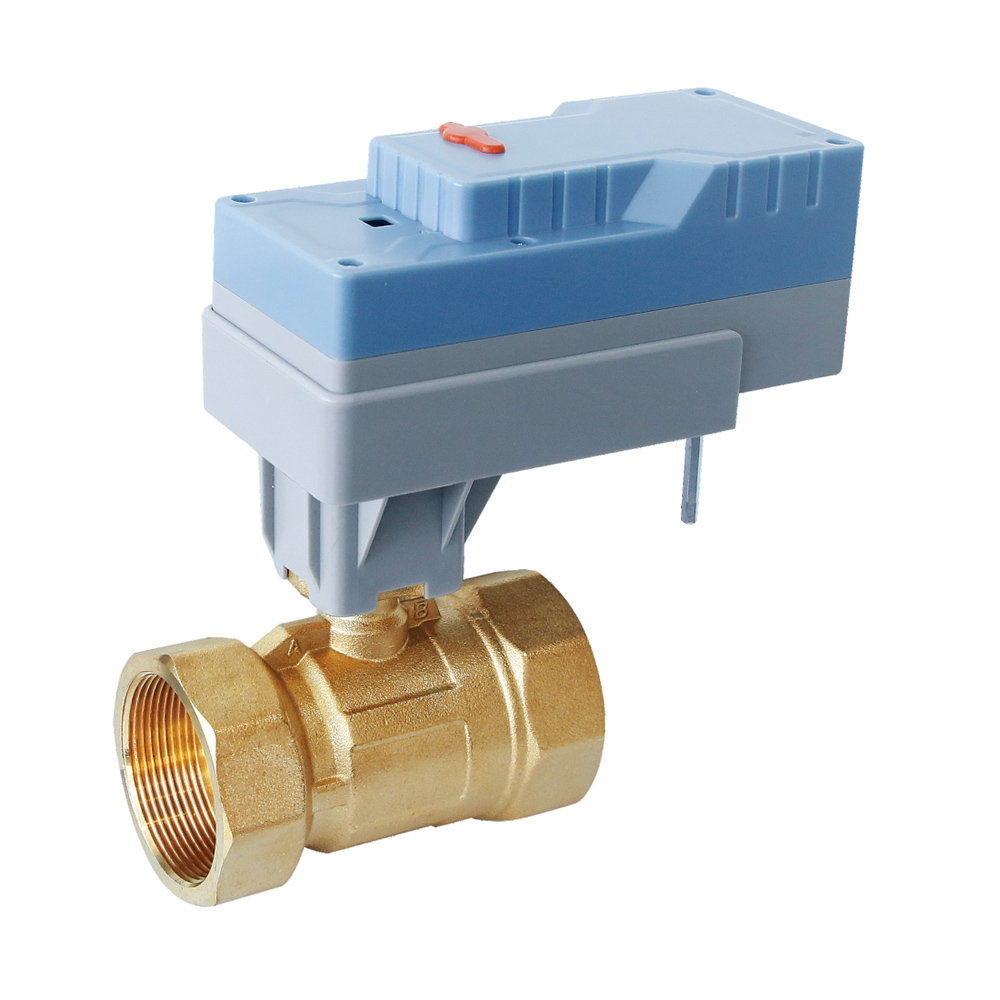

SHVN25 Series Smart Electric Ball Valve



Product Types:Motorized Ball Valve series



Product introduction:Connection diameter: DN15DN65 two-way/three-way Connection method: G thread internal thread (customizable NPT) Media range: h...

Telephone:+86 13360878813

Connection diameter: DN15DN65 two-way/three-way
Connection method: G thread internal thread (customizable NPT)
Media range: hot and cold water or 30% ethylene glycol solution ℃*95℃
Flow characteristics: ~30% linear 30″100% equal percentage
Valve body pressure: 2. OMpa/4. OMpa
Working voltage: AC24V/DC24V/AC220V 50/60Hz
Motor power consumption: 6. 5VA (motor power-off protection function when control is in place)
Control method: intelligent (0″10V/4~20mA) switch type
Output torque: 25NM
Operation time: 60″70 seconds to open the valve and 60~70 seconds to close the valve (angle ~9)
