The products are used for liquid flow and temperature regulation control in systems in the fields of chemical industry, petroleum, mining, electricity, food, pharmaceuticals, water supply and drainage, municipal administration, and mechanical equipment.

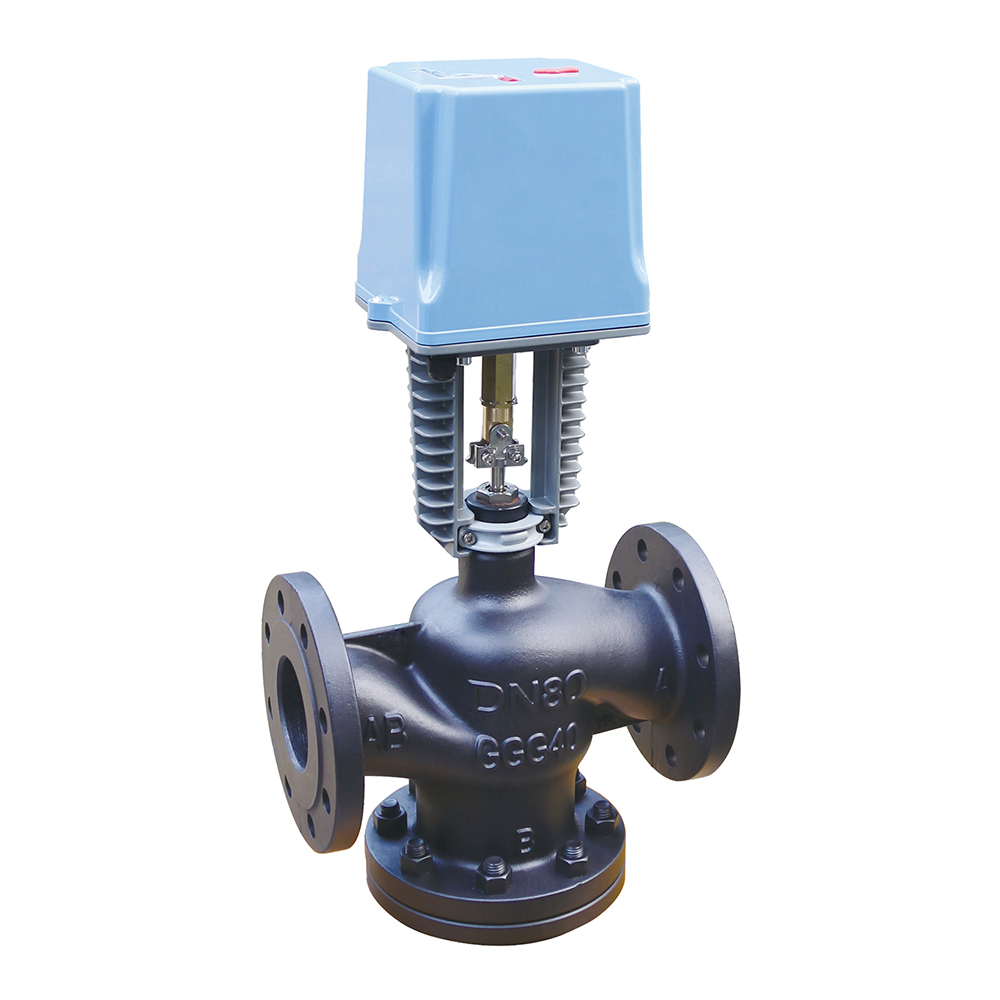

Valve body material: GGG40 ductile iron, 304 stainless steel stem, PPT seal
Connection diameter: DN1.5 ~ DN450 two-way/three-way (diversion/confluence)
Connection method: flange connection
Media range: hot and cold water or 30% ethylene glycol solution 0℃ ~ 1.8℃
Flow characteristics: ~ 30% linear 3 ~ 1.00% equal percentage
Valve leakage rate: less than 0 ~ o.05% of KVS value
Valve body pressure: 1.6Mpa/2.5Mpa
Drive material: die-cast ADC1.2 aluminum bracket steel gear, PC shell
Working voltage: AC24V/DC24V/AC220V 50/60Hz
Motor power consumption: 6.5VA/1.6VA/1.00VA (motor power-off protection function when control is in place)
Control method: intelligent (0 ~ 1 ov/4 ~ 20mA) switch type
Output torque: 1 500N/2500N/4000N/5000N/1 o000N/1 6000N/20000N Drive stroke: 1 500N stroke 20mm 2500N/4000N/5000N stroke 40mm
1 o000N/1 6000N/20000N stroke 60mm/1 o0MM optional
Installation method: clamping quick connection installation (compatible with Siemens drive)
