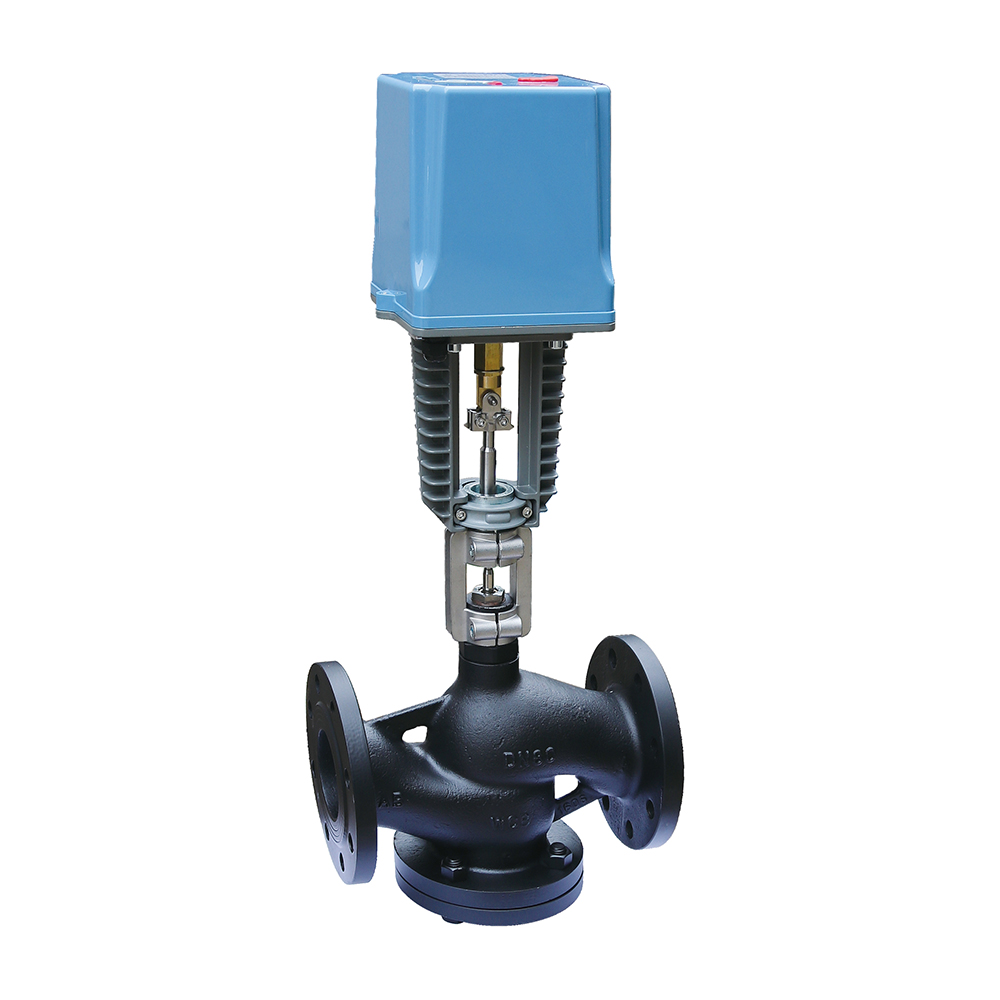

The products are used for liquid flow and temperature regulation control in systems in the fields of chemical industry, petroleum, mining, electricity, food, pharmaceuticals, water supply and drainage, municipal administration, and mechanical equipment.
Valve body material: carbon steel 304 stainless steel valve stem PPT seal
Connection diameter: DN25 ~ DN300 two-way/three-way (diversion/confluence)
Connection method: flange connection
Media range: hot and cold water or 30% ethylene glycol solution – 25℃ ~ 3℃
Flow characteristics: ~ 30% linear 3 ~ 100% equal percentage
Valve leakage rate: less than 0 ~ o. 05% of KVS value
Valve body pressure: 1. 6Mpa/2. 5Mpa
Drive material: die-cast ADC12 aluminum bracket steel gear, PC shell
Working voltage: AC24V/DC24V/AC220V 50/60H Z
Motor power consumption: 1. 6VA/24VA (motor power-off protection function when control is in place)
Control method: intelligent (0 ~ 1 oV/4 ~ 20MA) Switch type
Output torque: 2500N/4000N/5000N/1000N/16000N
Drive stroke: 1500N stroke 20mm 2500N/4000N/5000N stroke 40mm
1000N/16000N stroke 60mm/100MM optional
Installation method: Clamp-type quick-connect installation (compatible with Siemens drives)
