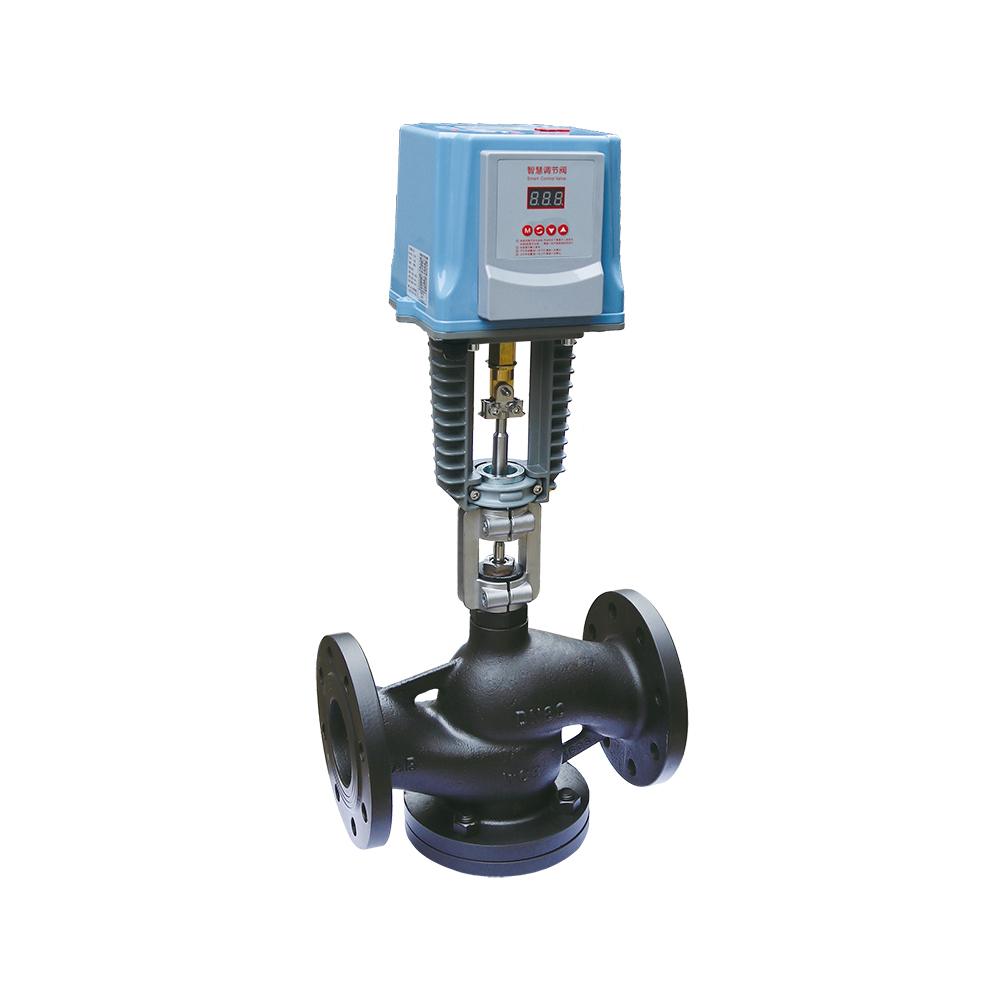

The products are used for liquid flow and temperature regulation control in systems in the fields of chemical industry, petroleum, mining, electricity, food, pharmaceuticals, water supply and drainage,

municipal administration, and mechanical equipment.
Valve body material: carbon steel 304 stainless steel valve stem PPT seal
Connection diameter: DN25 ~ DN300 two-way/three-way (diversion/combination)
Connection method: flange connection
Media range: hot and cold water or 30% ethylene glycol solution – 25℃ ~ 3℃
Flow characteristics: o ~ 30% linear 3o ~ 100% equal percentage
Valve leakage rate: less than 0 ~ o. 05% of KVS value
Valve body pressure: 1. 6Mpa/2. 5Mpa
Drive material: die-cast ADC12 aluminum bracket steel gear, PC shell
Working voltage: AC24V/AC220V 50/60H Z
Motor power consumption: 30VA/1o0VA (motor power-off protection function when control is in place)
Display function: valve position display manual/automatic conversion no signal electric open/close
Control method: Intelligent type (0 ~ 1 ov/4 ~ 20mA)
Output torque: 2500N/4000N/5000N/1 o000N/1 6000N/20000N
Installation method: Clamp-type quick-connect installation (compatible with Siemens drives)
