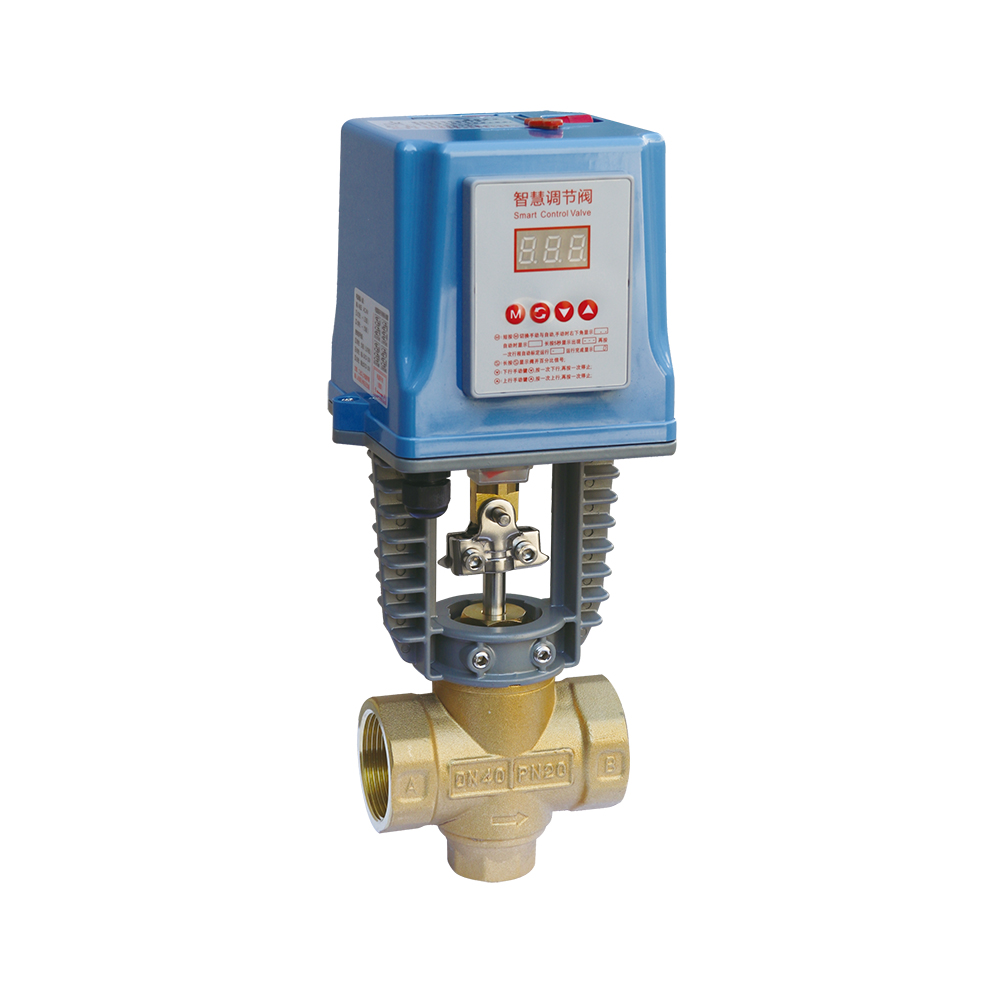

The product is used for liquid flow, pressure balance self-compensation and temperature regulation control of central air conditioning and heating equipment.

Valve body material: forged 59-1 brass, 304 stainless steel stem, EPDM seal
Connection diameter: DN1 5 DN65 two-way
Connection method: G thread internal thread (customizable NPT)
Media range: hot and cold water or 30% ethylene glycol solution 0℃ ~ 95℃
Flow characteristics: ~ 30% linear 3 ~ 1 00% equal percentage
Valve leakage rate: less than 0 ~ o. 05% of KVS value
Valve body pressure: 2. OMpa
Drive material: die-cast ADC1 2 aluminum bracket steel gear, PC shell
Working voltage: AC24V 50/60H Z
Motor power consumption: 6. 5VA (motor power-off protection function when control is in place)
Display function: valve position display manual/automatic conversion no signal electric open/close
Control method: intelligent (01 V/4 ~ 20mA)
Output torque : 1 500N (with power-off manual opening function)
Installation method: Direct plug-in quick connection installation
