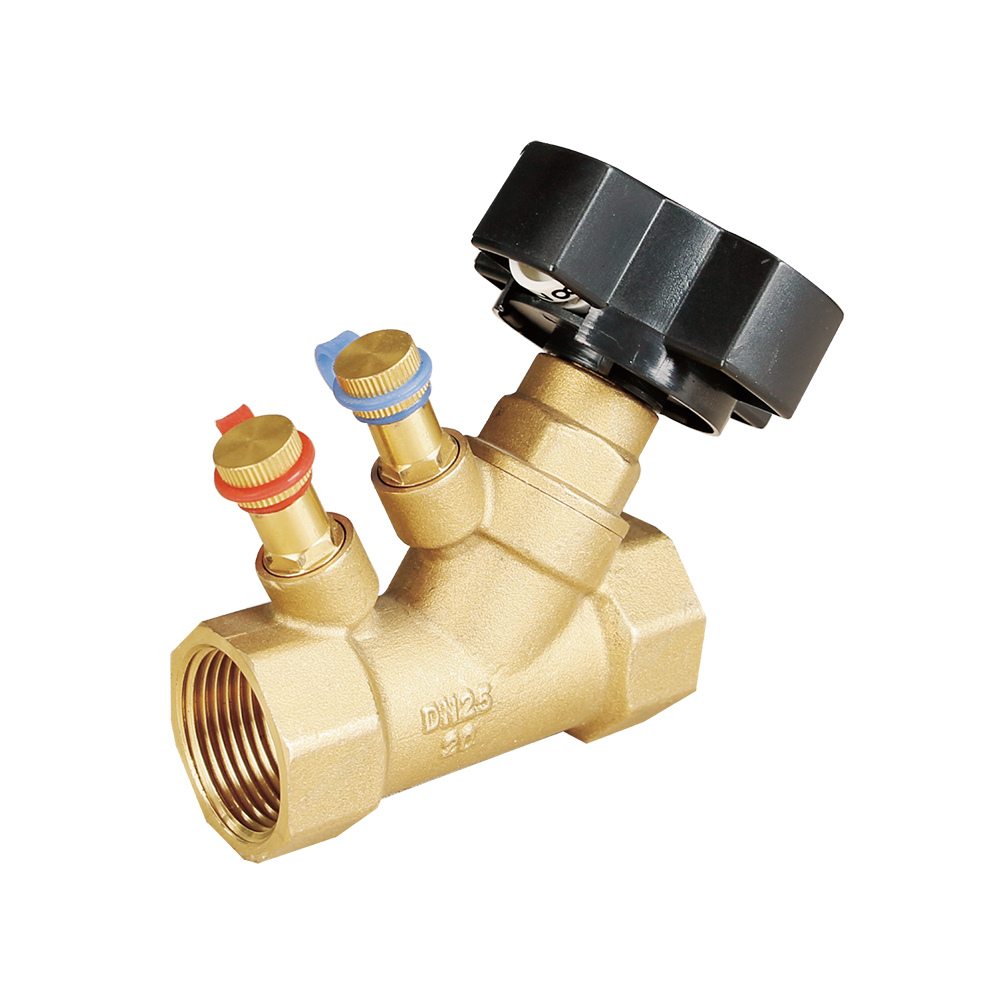

The balancing valve has precise design, simple structure, accurate parameters, large flow rate and pressure measuring holes on the same side, which is convenient for measurement and energy saving.

Valve body material: forged 59-1 brass lubricated stem EPDM seal
Valve stem material: alloy brass brass valve core
Adjustment handle: reinforced nylon with numbers
Connection diameter: DN15 ~ DN50
Connection method: G thread internal thread (customizable NPT)
Medium temperature: 0℃ ~ 95℃
Medium range: cold and hot water or 30% ethylene glycol solution 0℃ ~ 95℃
Valve body pressure: 1.6Mpa
