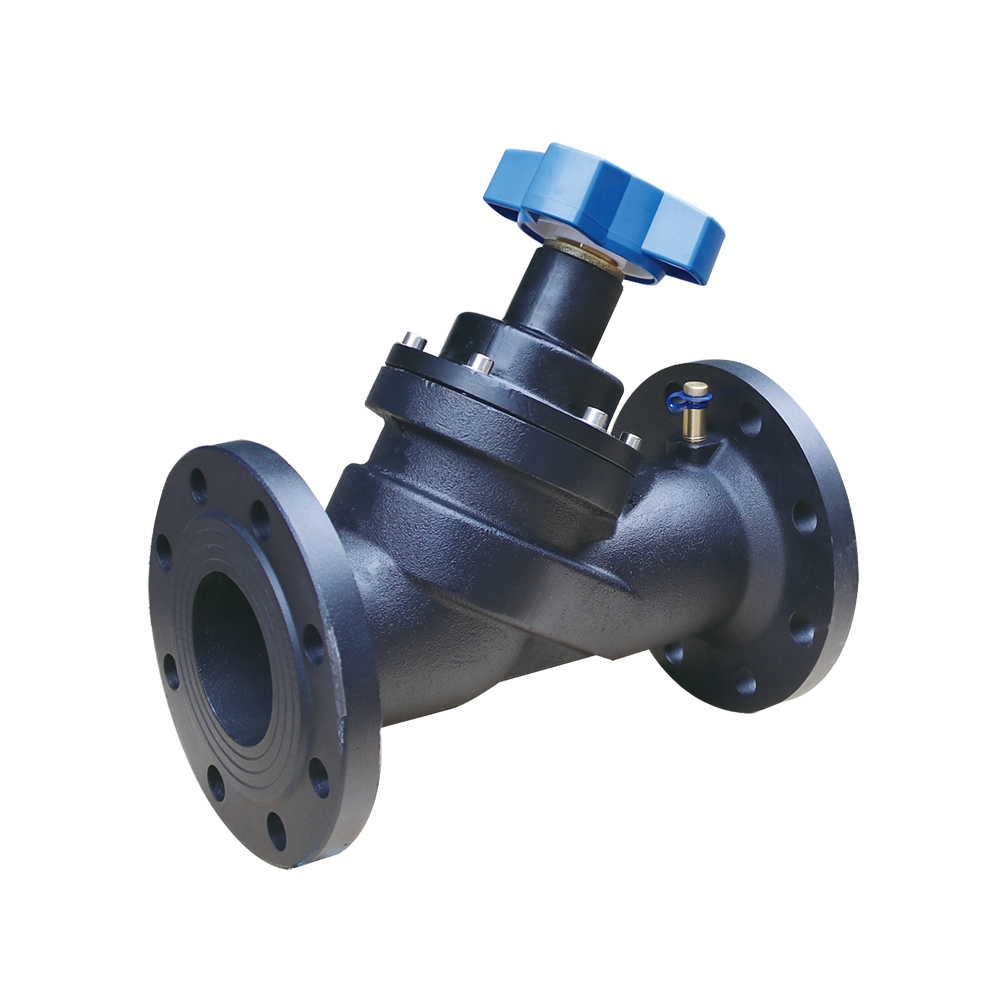

The Y-type inclined valve body structure is matched with the precisely machined valve cone form, which has the characteristics of compact structure and large flow capacity. The measuring unit has adjustment and shut-off functions.

Valve body material: QT450 ductile iron valve body EPDM seal
Valve stem material: 2CR1 3 ductile iron valve core
Adjustment handle: reinforced nylon with numbers
Connection caliber: DN32 ~ DN500
Connection method: flange connection
Medium temperature: 0℃ ~ 95℃
Medium range: cold and hot water or 30% ethylene glycol solution 0℃ 95c
Valve body pressure: 1.6Mpa
